Pre-lab

Pre-lab Reading

• Textbook pp 356 (Positioning Basics) - 369 (Fixed Positioning)

Use the reading to answer the Pre-lab Questions. Be sure to complete the reading and answer the pre-lab questions in Blackboard before the start of the lab period.

In-lab

Preparation

• Always make sure you save your lab files in the appropriate folder, i.e., lab7.
• For file names, only use lowercase letter and never use spaces.

A. Standard 2-Column Layout

1. Read pages 381 and 382.
2. In Notepad++, create a new filed called layout2.html and save it to your lab7 folder.
3. Add the HTML tags needed for the web page to validate as HTML5 (i.e., html, head, title, meta, and body tags)
4. Add a link to an external style sheet called layout2.css. The following code goes in the head: <link rel="stylesheet" type="text/css" href="layout2.css">
5. Add the markup shown on page 382 to the body of your web page. This will add four logical divisions for storing content.
6. In Notepad++, create a new filed called layout2.css and save it to your lab7 folder.
7. Add the styles shown on page 382 to the layout2.css file.
8. To better understand the space occupied by each division, add a background color to each division. Make the header and footer divisions lightgray. Make the extras division pink and the main division lightblue. You will have to add a selector for the header. You can literally use the color names; just make sure there are no spaces in the color name (background-color: lightblue).
9. Read and follow the instructions on pages 383-385. Add the wrapper division and the styles needed to make a two column, fixed width, and centered layout.
10. Save layout2.html and layout2.css.
11. Open layout2.html in a web browser and be sure it looks similar to Figure 16-9 on page 385.
12. Make sure layout2.html validates at http://validator.w3.org/#validate_by_upload

B. Full-Width Headers and Footers

1. Save your layout2.html files as layout2f.html.
2. Read the Figure 16-10 content on page 386 and change the structure of layout2f.html so that it has full-width headers and footers.
3. Note that we do not actually have to change the external css file.
4. Save layout2f.html.
5. Open layout2f.html in a web browser and resize the browser window to better understand how this layout works.
6. The header and footer are no longer nested inside the wrapper, which allows them to resize to the full width of the browser window.
7. Make sure layout2f.html validates at http://validator.w3.org/#validate_by_upload

C. Decorative Borders

1. Download border.png to your lab7 folder.
2. Add the following code to your previous file layout2.css:

     	border: 50px solid transparent;
   	border-image: url(border.png) 50 50 round;

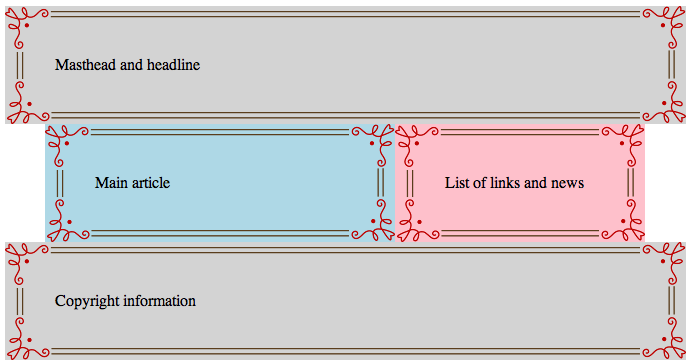

   to the appropriate divisions to create a layout that looks like this:

3. Note that we are adding very thick (50px) decorative borders to all the divisions except the wrapper.
4. To achieve the layout above, you must do the following:
   • Set the margin and padding of all the divisions to zero
   • Set the width of the wrapper to 800px
   • Set the width of the main and extras divisions so that they can fit side-by-side inside of the 800px wrapper
   • Hint: Remember that the main and extras divisions will have 50px borders on both the right and left side.
5. Make sure layout2f.html validates at http://validator.w3.org/#validate_by_upload
6. Show your instructor that layout2f.html is finished and validates.

E. Three-Column, Fluid Layout

1. From part A above, save your layout2.html files as layout3.html.
2. From part A above, save your layout2.css files as layout3.css.
3. In layout3.html change the link tag so it uses the layout3.css stylesheet.
4. Read the pages 386-387 and change the structure of layout3.html so that it has three columns as shown in Figure 16-11.
5. Note that you must add additional markup to layout3.html and change the styles in layout3.css
6. Save layout3.html and layout3.css.
7. Open layout3.html in a web browser and resize the browser window to better understand how this layout works.
8. Make sure layout3.html validates at http://validator.w3.org/#validate_by_upload
9. Show your instructor that layout3.html is finished and validates.

D. Changing the Order of Columns using Negative Margins

1. Download mountolympus-ex1.html and mountolympus-ex2.html to your lab7 folder.
2. Complete exercises 16-1 and 16-2 on pages 388-391
3. Show your instructor that mountolympus-ex1.html and mountolympus-ex2.html have the correct column ordering.
